Manufacturer and exporter of Hastelloy C276 Flanges, check Astm B564 Hastelloy C276 Slip On and Blind Pipe Flanges, Uns N10276 Forged Flanges Dimensions, WNR 2.4819 Socket Weld Flanges manufacturer in India
Hastelloy C276 Flanges Specification
Specification: ASTM B564 / ASME SB564
Size: 1/2" (15 NB) to 48" (1200NB)
JIS: 5K, 10K, 16K, 20K, 30K, 40K, 63K
Dimension Standard: ANSI, ASME, BS, DIN, EN etc.
Type: Ring Joint Flange (RTJ), Flat Face Flange (FF),
Raised Face Flange (RF), Male and Female Flange (M & F),
Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)
Pressure rating: 150#, 300#, 600#, 900#, 1500#, 2500#,
PN6, PN10, PN16, PN25, PN40, PN64 etc.

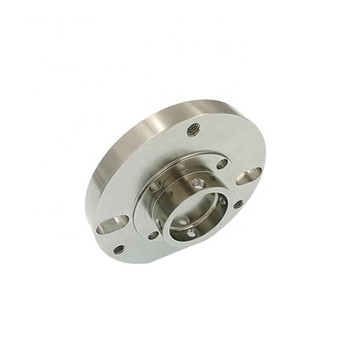

Hastelloy C276 is a popular nickel-molybdenum-chromium alloy known for its exceptional corrosion resistance in aggressive environments. Hastelloy C276 flanges from this alloy exhibit similar outstanding properties, making them suitable for various industrial applications. One of the key properties of Hastelloy C276 flanges is their corrosion resistance.
These flanges can withstand corrosive media such as oxidising and reducing acids, chloride-bearing solutions, seawater, and various organic and inorganic chemicals. This corrosion resistance makes Hastelloy C276 flanges highly sought after in industries such as chemical processing, petrochemicals, pollution control, and pulp and paper.
Hastelloy C276 flanges also possess excellent mechanical properties. They have a high tensile strength, which ensures their durability and ability to withstand pressure. Additionally, these flanges have good impact strength and resist stress corrosion cracking, making them reliable and long-lasting in demanding operational conditions. Furthermore, Hastelloy C276 flanges exhibit exceptional resistance to pitting and crevice corrosion.
Pitting is the localised corrosion of metal surfaces, while crevice corrosion occurs in confined spaces with limited oxygen supply. The resistance of Hastelloy C276 flanges to these forms of corrosion makes them suitable for applications in aggressive environments where other materials might fail.
Incoloy 825 Flanges Specifications
| Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Equipment | Bending machine, Pushing Machine,Press machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Special design |
As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector |
| Most common types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Manufacturer of |
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Uses & application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
At our company, we take utmost care in packaging Hastelloy C276 flanges. Each flange is individually wrapped in protective material to prevent any damage during transit. We use sturdy and secure packaging boxes to ensure safe delivery to our customers. Our packaging process ensures that the flanges reach our customers in excellent condition, ready to be utilised in their applications.
