Specification: ASTM B381 / ASME SB381
Size: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
JIS: 5K, 10K, 16K, 20K, 30K, 40K, 63K
Dimension Standard: ANSI, ASME, BS, DIN, EN etc.
Type: Ring Joint Flange (RTJ), Flat Face Flange (FF),
Raised Face Flange (RF), Male and Female Flange (M & F),
Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)
Pressure rating: 150#, 300#, 600#, 900#, 1500#, 2500#,
PN6, PN10, PN16, PN25, PN40, PN64 etc.

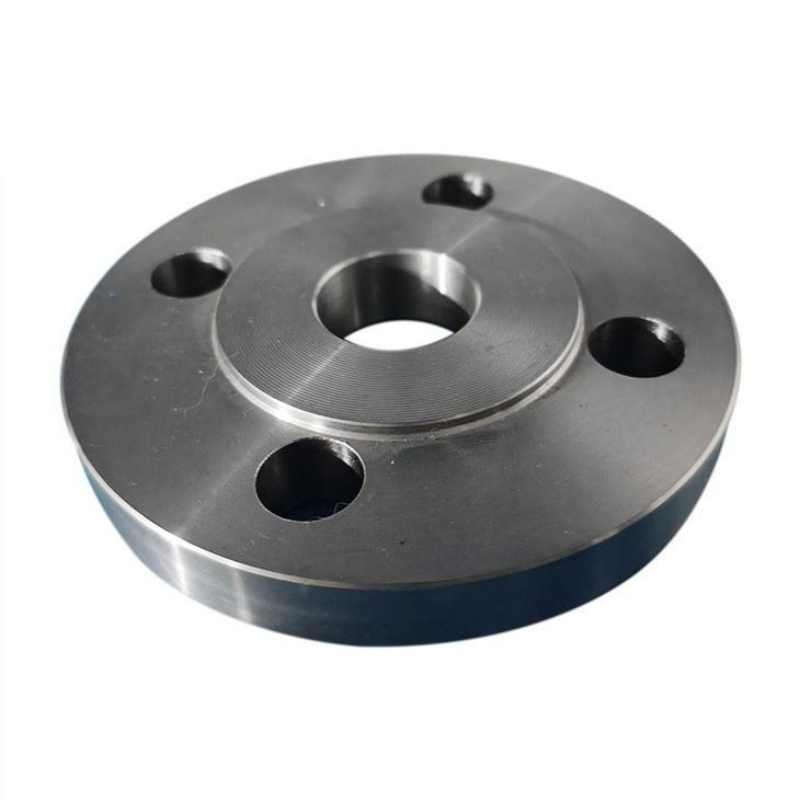

Titanium Gr-5 flanges, also called Grade 5 or Ti-6Al-4V flanges, have become very important within various industries due to their impressive qualities. Manufactured using a popular alloy of titanium, 90%, aluminum, 6%, and vanadium, 4%, the combination of these elements provides Titanium Gr-5 flanges with remarkable properties, resulting in their frequent usage for many purposes.
One of the key properties of Titanium Gr-5 flanges is their exceptional strength-to-weight ratio. They exhibit a high tensile strength comparable to many low-alloy steels while significantly lighter. This makes them ideal for applications where weight reduction is critical without compromising structural integrity. The superior strength of these flanges enables them to withstand high-pressure environments and provides excellent resistance to fatigue, making them suitable for demanding industrial operations.
Titanium Gr-5 flanges also possess excellent heat resistance. They can withstand high temperatures without losing their mechanical properties, making them suitable for applications in high temperature environments such as aerospace components, gas turbines, and exhaust systems. Moreover, these flanges have good creep resistance, ensuring dimensional stability and reliability under prolonged exposure to high temperatures and mechanical stresses.
Furthermore, Titanium Gr-5 flanges offer excellent biocompatibility, making them suitable for medical and dental applications. They are widely used in manufacturing orthopedic implants, dental implants, and surgical instruments due to their compatibility with the human body. The biocompatibility of these flanges ensures minimal tissue reaction, promotes osseointegration and reduces the risk of implant rejection or adverse reactions.
|Standards||GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN|
|Pressure Rating ANSI||Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600,|
|Pressure Calculation in DIN||10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6|
|JIS||16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K,|
|UNI||10Bar 16Bar 6Bar 25Bar 40Bar|
|EN||6Bar 25Bar 40Bar 10Bar 16Bar|
|Most common Types||Threaded / Screwed / Forged / Plate|
|Shapes and Types we produce||Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF)|
|Test||Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector|
|Equipment||Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc|
Besides their material characteristics, Titanium Gr-5 flanges are widely recognized for their weldability and shapeability. Applying the usual welding approaches allows these flanges to be easily modified and manufactured into the exact configurations needed, making them a top pick among businesses requiring complex forms.
