Omaa Metal Sources is an astounding party, which was set up longer than 10 years before contemplate making arrangements of ASTM A105 Insert Weld Outlets principles in Weld Outlets, Nipple Outlets, Sweep Outlets, 45 Deg Outlets/Lateral Outlets , Socket Weld Outlets, and so on in all materials like Stainless Steel , Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Pipe Fittings which meets with public and generally quality norms and giving base which cases supplies acclimating to commonly communicate even out and is a huge load of furnished with an entire arrangement of best in class plasma refining sorts of stuff.
Braze Outlets, Braze Outlets Manufacturers, Braze Outlets Exporters, Braze Outlets Suppliers, Braze Outlets Stockists.ASTM A105 Braze Outlets , ASTM A105 Braze Outlets Dimensions , Outlets Fittings, Outlets.
Braze Outlets Manufacturers in Mumbai, Braze Outlets Exporters in Mumbai, Braze Outlets Suppliers in Mumbai, Braze Outlets Stockists in Mumbai.Manufacturer , Exporter & Supplier of ASTM A105 Braze Outlets , ASTM A105 Braze Outlets Dimensions ,Braze Outlets , Outlets Fittings, Outlets.
We produce every one of the 3 social gatherings of Fittings, for example, Buttweld (BW) fittings, Socket Weld (SW) fittings and Threaded (THD) Fittings as shown by ASTM principles and other International norms. We trade our incredible ASTM A105 Insert Weld Outlets to Kuwait, Egypt and Qatar.
Specifications of ASTM A105 Braze Outlets
Size : 1/2'' - 24
Type : Weld Outlets, Socket Weld Outlets, Nipple Outlets, Threading Outlets, 45 Deg Outlets / Lateral Outlets, Flexolet butt-weld, Flexolet Threaded and Sweep Outlets
MATERIALS :
Stainless Steel Outlets – SS Weld Outlets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Outlets - Duplex SS Weld Outlets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Outlets – CS Weld Outlets
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Nickel Alloy Weld Outlets :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

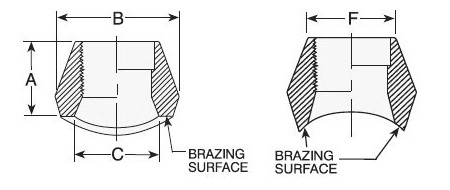

Dimensions of ASTM A105 Braze Outlets:
| Braze Outlets for IPS Pipe | |||||
| ASME SB-98 UNS C665500 Alloy A | |||||
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 3/4 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/4 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 2 1/2 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 3 | 2 | 4 13/16 | 3 11/16 | 0.442 | 3.880 |
| 4 | 2 1/4 | 6 | 4 3/4 | 0.476 | 4.940 |
| 5 | 2 5/8 | 7 1/16 | 5 9/16 | 0.656 | 6.163 |
Braze Outlets for Tubing |
|||||
Type K, L, and M Tubing. ASME SB-98 UNS C65500 Alloy A |
|||||
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 3/4 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 1 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 1/4 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/2 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 1/2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 3 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 4 | 2 1/8 | 5 1/2 | 4 5/16 | 0.437 | 4.400 |
Applications Of ASTM A105 Braze Outlets:
- ASTM A105 Braze Outlets used in Chemical and petrochemical processing
- ASTM A105 Braze Outlets used in refineries
- ASTM A105 Braze Outlets used in electronics
- ASTM A105 Braze Outlets used in fertilizer
- ASTM A105 Braze Outlets used in power plant
- ASTM A105 Braze Outlets used in nuclear power
- ASTM A105 Braze Outlets used in oil and gas
- ASTM A105 Braze Outlets used in paper industries
