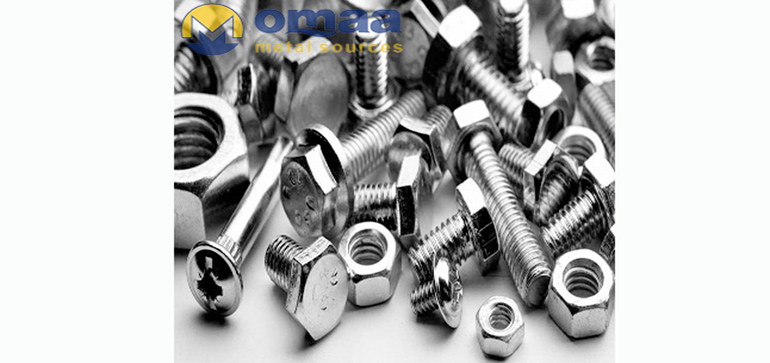

Specification of Stainless Steel Fasteners
| Fasteners Specifications | ASTM A193 & ASME SA193 for bolts and ASTM A194 and ASME SA194 |
|---|---|
| Standard of Stainless Steel Fasteners | IS, ANSI, ASTM DIN, ISO, JIS, GB, ASME, BS, UNI and all International Standards |
| Stainless Steel Fasteners/ Bolts Size | M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160 |
| Length of Stainless Steel Fasteners | 3 mm to 200 mm |
| Stainless Steel Studs, Bolts Threads: | BSF, UNF METRIC, UNC, BSW or as required |
| Standard of SS Fasteners: | ANSI – American National Standards Institute
DIN:DIN 933, DIN 931, DIN 970, DIN 934 UTS – Unified Thread Standard : UNF, NPT, NPTF, UNS, UNC, UNEF ISO – International Organization for Standardization ISO 4033, : ISO 4032, JIS standards |
| raw materials of Source | JSPL, Usha Martin, Tata Steel, Mukund Steel, RINL, Dhamm Steel etc. |
| Form of Stainless Steel Fasteners: | Square, Hex, Threading as per Gauge, Round Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe etc |
| Test Certificate of Stainless Steel bolting : | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Finishing of Stainless Steel Fasteners: | Zinc white, (yellow, black, blue), black oxide,
Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated, Stainless steel: Passivated Self-Colour, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, Stainless Steel, some special one like DACROMET and Mechanically Applied coating |
| Process of Production | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Surface Coating of Stainless Steel bolting materials: |
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Dacromet, Sherardized |
| Packing of Stainless Steel Fasteners : | IN BULK: pallet, canton, carton / Small Boxs / pallet or customer request |
SS Fasteners Materials overview
AISI |
ISO |
SUS (JIS) |
DIN |
Description |
|---|---|---|---|---|
302 HQ |
A2 |
XM-7 |
1.4567 |
Austenitic chromium-nickel steel, highly resistant to corrosion. Due to the additional copper content, it is particularly suitable for cold forming. |
304 |
A2 |
304 |
1.4301 |
Austenitic chromium-nickel steel, highly resistant to corrosion. |
316 |
A4 |
316 |
1.4401 |
Particularly corrosion-resistant austenitic chromium-nickel steel with molybdenum content. |
316 Cu |
A4 |
316 Cu |
Similar to 316 with additional copper content to improve cold formability. |
|
316 L |
A4 |
316 L |
1.4404 |
Particularly corrosion-resistant austenitic chromium-nickel steel with molybdenum content and with lower carbon content compared to conventional 316. |
410 |
C1 |
410 |
1.4006 |
Heat-treatable, martensitic stainless steel. Polished against water and steam resistant. |
430 |
F1 |
430 |
1.4016 |
Ferritic chromium-nickel steel, mirror polishing, resistant to water, steam, weak acids. |

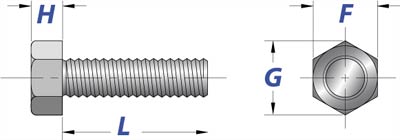

Dimensions of Stainless Steel Bolts
**All measurements in millimeters**
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |

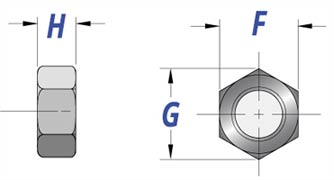

Dimensions of Stainless Steel Nuts
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Torque Chart of Stainless Steel Bolts
| Torque Specifications | |||||||
|---|---|---|---|---|---|---|---|
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
|
304
Stainless Steel |
316
Stainless Steel |
||||||
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
|
304
Stainless Steel |
316
Stainless Steel |
||||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
|
304
Stainless Steel |
316
Stainless Steel |
||||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Foot-Pounds
|
|||||
|
304
Stainless Steel |
316
Stainless Steel |
||||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
Dimensions of Stainless Steel Heavy Hex Nuts
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 1/2 | .500 | .488 | .577 | .556 | 15/64 | .250 | .218 |
| 5/16 | .3125 | 9/16 | .562 | .546 | .650 | .622 | 19/64 | .314 | .280 |
| 3/8 | .3750 | 11/16 | .688 | .669 | .794 | .763 | 23/64 | .377 | .341 |
| 7/16 | .4375 | 3/4 | .750 | .728 | .866 | .830 | 27/64 | .441 | .403 |
| 1/2 | .5000 | 7/8 | .875 | .850 | 1.010 | .969 | 31/64 | .504 | .464 |
| 9/16 | .5625 | 15/16 | .938 | .909 | 1.083 | 1.037 | 35/64 | .568 | .526 |
| 5/8 | .6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | .631 | .587 |
| 3/4 | .7500 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | .758 | .710 |
| 7/8 | .8750 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | .885 | .833 |
| 1 | 1.0000 | 1-5/8 | 1.325 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | .956 |
| 1-1/8 | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/4 | 1.2500 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
| 1-3/8 | 1.3750 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/32 | 1.378 | 1.460 |
| 1-1/2 | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 2 | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/4 | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 2-13/64 | 2.251 | 2.155 |
| 2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 2-3/4 | 2.7500 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
| 3 | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/4 | 3.2500 | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 3-3/16 | 3.252 | 3.124 |
| 3-1/2 | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
| 3-3/4 | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.670 | 3.616 |
| 4 | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
SS Fasteners Weight Chart
MM THREADS AS PER IS 1363/67 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||
LENGTH |
D I A M E T E R |
|||||||||
M 5 |
M 6 |
M 8 |
M 10 |
M 12 |
M 14 |
M 16 |
M 18 |
M 20 |
M 22 |
|
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
MM THREADS AS PER IS 1363/67 CONTD |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||||||
LENGTH |
D I A M E T E R |
|||||||||||||
M 24 |
M 27 |
M 30 |
M 33 |
M 36 |
M 39 |
M 42 |
M 45 |
M 48 |
M 52 |
M 56 |
M 60 |
M 64 |
M 72 |
|
| 60 mm | 42.373 | 57.471 | 70.423 | |||||||||||
| 65 mm | 43.860 | 59.524 | 75.758 | |||||||||||
| 70 mm | 45.455 | 60.976 | 81.967 | |||||||||||
| 75 mm | 47.170 | 63.291 | 84.746 | |||||||||||
| 80 mm | 49.020 | 65.789 | 87.719 | 108.696 | 135.135 | |||||||||
| 90 mm | 52.632 | 70.423 | 94.340 | 116.279 | 142.857 | |||||||||
| 100 mm | 56.180 | 74.627 | 100.000 | 125.000 | 156.250 | 192.308 | 217.391 | |||||||
| 110 mm | 60.241 | 79.365 | 104.167 | 131.579 | 166.667 | 200.000 | 238.095 | |||||||
| 120 mm | 63.291 | 83.333 | 108.696 | 135.135 | 172.414 | 208.333 | 250.000 | 312.500 | ||||||
| 130 mm | 66.667 | 87.719 | 113.636 | 142.857 | 178.571 | 217.391 | 263.158 | 357.143 | ||||||
| 140 mm | 69.444 | 92.593 | 119.048 | 151.515 | 185.185 | 227.273 | 277.778 | 384.615 | ||||||
| 150 mm | 73.529 | 98.039 | 125.000 | 156.250 | 192.308 | 238.095 | 294.118 | 333.333 | ||||||
| 160 mm | 76.923 | 102.041 | 131.579 | 166.667 | 200.000 | 250.000 | 294.118 | 416.667 | 714.286 | |||||
| 170 mm | 80.645 | 106.383 | 138.889 | 172.414 | 208.333 | 263.158 | 312.500 | 500.000 | 625.000 | 833.333 | ||||
| 180 mm | 83.333 | 111.111 | 142.857 | 178.571 | 217.391 | 263.158 | 312.500 | 357.143 | 454.545 | |||||
| 190 mm | 87.719 | 116.279 | 147.059 | 185.185 | 227.273 | 277.778 | 333.333 | |||||||
| 200 mm | 90.909 | 119.048 | 151.515 | 192.308 | 238.095 | 294.118 | 333.333 | 384.615 | 555.556 | |||||
| 220 mm | 98.039 | 128.205 | 166.667 | 208.333 | 250.000 | 312.500 | 357.143 | 500.000 | 714.286 | 833.333 | 1,250.000 | |||
| 240 mm | 106.383 | 138.889 | 178.571 | 217.391 | 277.778 | 333.333 | 384.615 | 416.667 | 625.000 | 1,000.000 | ||||
| 250 mm | 111.111 | 142.857 | 185.185 | 227.273 | 294.118 | 333.333 | 384.615 | 555.556 | ||||||
| 260 mm | 113.636 | 147.059 | 185.185 | 227.273 | 312.500 | 357.143 | 416.667 | |||||||
| 280 mm | 119.048 | 156.250 | 200.000 | 250.000 | 312.500 | 357.143 | 416.667 | 454.545 | 833.333 | 1,000.000 | ||||
| 300 mm | 128.205 | 166.667 | 208.333 | 263.158 | 333.333 | 384.615 | 454.545 | 625.000 | 714.286 | 1,250.000 | 1,666.667 | |||
| 320 mm | 135.135 | 178.571 | 217.391 | 277.778 | ||||||||||
| 340 mm | 142.857 | 185.185 | 238.095 | 294.118 | ||||||||||
| 360 mm | 147.059 | 192.308 | 250.000 | 294.118 | ||||||||||
| 380 mm | 156.250 | 200.000 | 250.000 | 312.500 | ||||||||||
| 400 mm | 161.290 | 217.391 | 263.158 | 333.333 | ||||||||||
BSW THREADS AS PER BS 916/53 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||||||
LENGTH |
D I A M E T E R |
|||||||||||||
1/4″ |
5/16″ |
3/8″ |
7/16″ |
1/2″ |
5/8″ |
3/4″ |
7/8″ |
1″ |
1.1/8″ |
1.1/4″ |
1.1/2″ |
1.3/4″ |
2″ |
|
| 3/4″ | 1.111 | |||||||||||||
| 1″ | 1.252 | 2.041 | 3.123 | 4.950 | ||||||||||
| 1.1/4″ | 1.401 | 2.281 | 3.458 | 5.388 | 7.692 | 13.966 | ||||||||
| 1.1/2″ | 1.556 | 2.523 | 3.797 | 5.875 | 8.306 | 14.925 | 23.810 | 29.240 | ||||||
| 1.3/4″ | 1.705 | 2.762 | 4.132 | 6.329 | 8.897 | 15.924 | 25.253 | 31.056 | 45.045 | |||||
| 2″ | 1.864 | 3.003 | 4.468 | 6.793 | 9.506 | 16.949 | 26.882 | 32.680 | 47.619 | |||||
| 2.1/4″ | 2.005 | 3.245 | 4.826 | 7.246 | 10.121 | 17.921 | 28.249 | 34.483 | 50.505 | 70.423 | ||||
| 2.1/2″ | 2.159 | 3.484 | 5.144 | 7.704 | 10.707 | 18.868 | 29.762 | 36.765 | 52.632 | 73.529 | 98.039 | 156.250 | 227.273 | 312.500 |
| 3″ | 2.459 | 3.965 | 5.814 | 8.621 | 11.933 | 20.921 | 32.468 | 40.323 | 56.818 | 79.365 | 106.383 | 166.667 | 250.000 | 333.333 |
| 3.1/2″ | 2.762 | 4.444 | 6.485 | 9.542 | 13.123 | 22.831 | 35.714 | 43.860 | 60.976 | 84.746 | 113.636 | 178.571 | 250.000 | 333.333 |
| 4″ | 3.075 | 4.926 | 7.153 | 10.460 | 14.327 | 24.876 | 38.462 | 48.544 | 66.667 | 90.909 | 119.048 | 185.185 | 277.778 | 357.143 |
| 4.1/2″ | 3.367 | 5.405 | 7.813 | 11.364 | 15.528 | 26.882 | 40.984 | 51.546 | 69.444 | 98.039 | 128.205 | 192.308 | 277.778 | 384.615 |
| 5″ | 3.655 | 5.903 | 8.475 | 12.285 | 16.779 | 28.902 | 43.860 | 54.945 | 76.923 | 102.041 | 135.135 | 208.333 | 294.118 | 384.615 |
| 5.1/2″ | 3.946 | 6.386 | 9.141 | 13.158 | 17.921 | 30.864 | 47.170 | 58.824 | 81.967 | 108.696 | 147.059 | 227.273 | 333.333 | 416.667 |
| 6″ | 4.237 | 6.868 | 9.804 | 14.085 | 19.157 | 32.680 | 50.505 | 63.291 | 86.207 | 116.279 | 156.250 | 238.095 | 357.143 | 416.667 |
| 7″ | 20.833 | 34.722 | 53.763 | 73.529 | 96.154 | 128.205 | 172.414 | 250.000 | 384.615 | 500.000 | ||||
| 8″ | 23.585 | 38.462 | 58.140 | 79.365 | 106.383 | 142.857 | 185.185 | 277.778 | 416.667 | 555.556 | ||||
| 9″ | 25.907 | 42.735 | 64.935 | 87.719 | 116.279 | 156.250 | 200.000 | 312.500 | 454.545 | 555.556 | ||||
| 10″ | 28.736 | 47.619 | 71.429 | 96.154 | 125.000 | 166.667 | 217.391 | 333.333 | 454.545 | 625.000 | ||||
| 11″ | 31.250 | 50.505 | 75.758 | 104.167 | 135.135 | 178.571 | 238.095 | 357.143 | 500.000 | 714.286 | ||||
| 12″ | 33.557 | 53.763 | 80.645 | 113.636 | 147.059 | 192.308 | 250.000 | 384.615 | 555.556 | 714.286 | ||||
| 14″ | 38.462 | 60.976 | 92.593 | 125.000 | 166.667 | 217.391 | 277.778 | 416.667 | 625.000 | 833.333 | ||||
| 16″ | 43.478 | 68.493 | 104.167 | 142.857 | 185.185 | 238.095 | 312.500 | 500.000 | 714.286 | 1,000.000 | ||||
| 18″ | 48.544 | 76.923 | 113.636 | 156.250 | 208.333 | 263.158 | 333.333 | 555.556 | 714.286 | 1,000.000 | ||||
| 20″ | 53.763 | 84.746 | 125.000 | 172.414 | 227.273 | 294.118 | 384.615 | 625.000 | 833.333 | 1,250.000 | ||||
